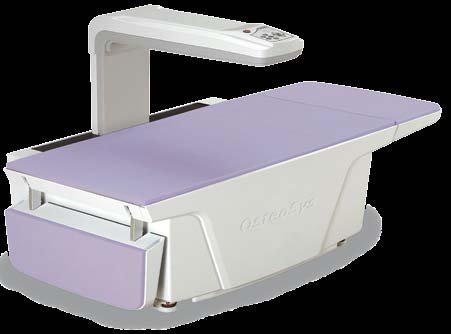

SPECIFICAȚII PDFOSTEODENSITOMETRU DEXA
Specifications:
Greutate: 135Kg
Input voltage and frequency :
100VAC ~ 240VAC / 50Hz ~ 60Hz
Power consumption : 400VA
X-ray generator
Model name : EMB-0165
Maximum tube voltage : 110KV
Maximum tube current : 1.5mA
Power consumption : 50W
Capacity : 165W
Input voltage and frequency :
110VAC/220VAC ± 10%
Lowest Current Time product :
1mAs (0.2mA, 5seconds)
Aluminum equivalent :
2.8mmAL (samarium + X-ray tube)
X-ray tube
Manufacturer : TOSHIBA
Model name : DF-151SBR
Maximum tube voltage : 121KVMaximum
tube current : 3.1A
Focal spot size : 0.5mm
Cathode : Tungsten filament
Anode : 14 fixed-type tungsten target
Anode input : 248VDC / 1.6A
Detector
Model name : EV-381
Image sensor : CdZnTe
Image area : 11mm diameter
Performances
Image size (spine) : 160mm X 192mm
Image size (Femur) : 120mm X 180mm
Reproducibility : ± 1.5% CV
Accuracy : ± 1.5% CV
X-ray radiation time :
1min 25sec – 3min 50sec
Radiation dose :
below 10m Rem per examination (5m distance)
Residual radiation :
Below 1 mRem (5m distance)
Use environment
Operating temperature :
above 15°C below 40°C
Suitable humidity : 20% ~ 80%
Suitable air pressure : 700 ~ 1060 Hpa
Impact : Within 2G in 6 X 10-3sec
Storage temperature range :
Above -5 °C below 50 °C
Storage humidity range : 0% ~ 90%
